1.39 Inch TFT Touch Display 360*360 QSPI Round Customized Capacitive Touch Panel

  • 1
  • 2
  • 3

Certification : RoSH, Reach

MOQ : 10pcs

Price : Negotiable

Packaging Details : Cartons, Capboard, EPE, Blister Tray.

Delivery Time : 3-5days

Payment Terms : T/T, Paypal

Supply Ability : 7kk/M

Brand Name : Limito

Model Number : QB139R-PC56F1

Place of Origin : China

Diagonal Screen Size : 1.39

Drive IC : CST816D

Interface : I2C

Operating Temp : -10℃~ +60℃

Storage Temp : -20℃~+ 70℃

Backlight : 3 White LED Parallel

Brightness : 550

Contact Now

1.39 Inch 360*360 QSPI Round TFT LCD Display Customized Capacitive Touch Panel

LIMITO IPS TFT LCD Display Description:

QB139R-PC56F1 is a 360RGBX360 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight and a CTP unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.39

Display Mode

Normally black

Resolution

360(H)RGB x360(V)

Pixel pitch

0.09807(H) X 0.09807(V)

Active area

⌀35.3052

Module size

38.79(H) x 39.5(V) x4.085 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

550 (TYP)Cd/m2

Viewing Direction
All View

Weight

TBD

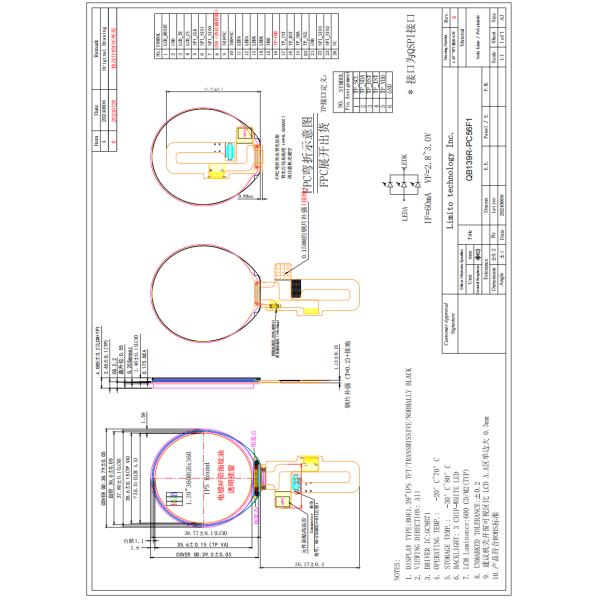

LIMITO IPS TFT LCD Display Mechanical Drawing

1.39 Inch TFT Touch Display 360*360 QSPI Round Customized Capacitive Touch Panel

LIMITO IPS TFT LCD Display Advantages:

1. High-Resolution Round Display

360×360 resolution ensures sharp and clear visuals, ideal for circular smartwatch faces and compact UI designs.

1.39-inch size provides a good balance between readability and compactness.

2. QSPI Interface for Faster Data Transfer

Quad-SPI (QSPI) interface allows high-speed communication with low pin count, reducing wiring complexity.

Efficient for animations and dynamic content with low power consumption.

3. Customizedized Capacitive Touch Panel

Supports multi-touch or gesture recognition (depending on Customizedizedization).

Smooth and responsive touch experience, enhancing user interaction.

Can be Customizedizedized for glove touch or water resistance (if required).

4. Circular Design for Aesthetic Appeal

Round form factor is ideal for modern smartwatches and fashion-forward wearables.

Enables unique and stylish UI designs compared to traditional rectangular displays.
